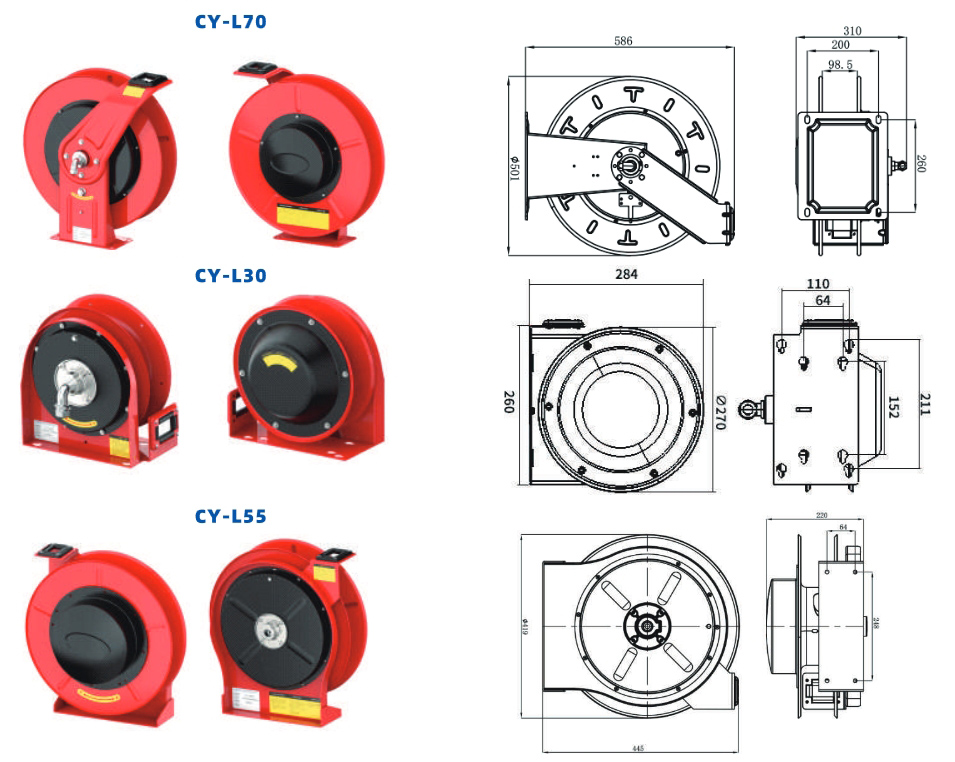

Cable Reel CY-L30/L55/L70 Series
Used for stage lighting in TV studios, bars, and performance halls, charging systems in new energy and other industries, communication control systems for drones, underwater robots (ROVs), etc.
Provide power, network communication, video transmission, R232 and other signal reel solutions.
Can be configured with dedicated flexible cables and tensile cables.
Customized design is available.
Adjustable buffer stop: allows any desired length of rope to be maintained outside the reel.
Adjustable guide arm: multiple guide arm positions for multi-functional use and on-site adjustment.
Closed drive slip ring: high-quality slip ring with a design life of 500,000 times, precious metal slip rings meet all types of precision signal communications.
High strength and light weight: mold parts are used to reduce the overall weight of the reel to meet the vibration requirements of the vehicle.
Used for stage lighting in TV studios, bars, and performance halls, charging systems in new energy and other industries, communication control systems for drones, underwater robots (ROVs), etc.;
Provide power, network communication, video transmission, R232 and other signal reel solutions.
Can be configured with dedicated flexible cables and tensile cables.
Customized design is available.
| Model | Cable specifications | Cable specifications | Cable length | Volt | Ampere | Weight | Model (cable not included) | Weight | Size |
|---|---|---|---|---|---|---|---|---|---|
| mm² | m | V | A | kg | kg | Number | |||
| LB30-9-153-3C | Cables, plugs, sockets | 3*1.5 | 9 | 220 | 10 | 9 | LB30-00 | 8 | 1 |
| LB30-9-133-X | Cable (without plug and socket) | 3*2.5 | 9 | 220 | 10 | 9 | LB30-00 | 8 | 1 |
| LB40-15-153-3C | Cables, plugs, sockets | 3*1.5 | 15 | 220 | 10 | 12 | LB40-00 | 9 | 2 |
| LB41-12-154-X | Cable (without plug and socket) | 3*1.5+1 | 12 | 380 | 10 | 12 | LB41-00 | 9 | 2 |
| LB41-12-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 12 | 380 | 16 | 12 | LB42-00 | 9 | 2 |
| LB45-12-176-X | Signal line | 6*1 | 12 | 24 | 3 | 11 | LB45-00-176-X | 9 | 2 |
| LB55-15-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 15 | 380 | 16 | 22 | LB55-00-134-X | 16 | 3 |
| LB55-15-114-X | Cable (without plug and socket) | 3*4+1*2.5 | 15 | 380 | 20 | 23 | LB55-00-114-X | 16 | 3 |
| L70-21-134-X | Cable (without plug and socket) | 3*2.5*1*1.5 | 21 | 380 | 16 | 27 | L70-00-134-X | 19 | 4 |
| L70-15-094-X | Cable (without plug and socket) | 3*6+1*4 | 15 | 380 | 30 | 27 | L70-00-094-X | 19 | 4 |
| L70-15-135-X | Cable (without plug and socket) | 5*2.5 | 15 | 380 | 16 | 26 | L70-00-135-X | 19 | 4 |
| L70-15-095-X | Cable (without plug and socket) | 3*6+2*4 | 15 | 380 | 30 | 29 | L70-00-095-X | 19 | 4 |
| L70-15-1512-X | Cable (without plug and socket) | 12*1.5 | 15 | – | 10 | 26 | L70-00-1512-X | 19 | 4 |
| L70-20-1E2 | Network cable | 20 | – | – | 20 | L70-00-1E2 | 19 | 4 | |
| L70-30-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 30 | 380 | 16 | 34 | L70-00-134-X | 23 | 5 |
| L70-23-094-X | Cable (without plug and socket) | 3*6+1*4 | 23 | 380 | 30 | 36 | L70-00-094-X | 23 | 5 |
| LC70-25-094-X | Cable (without plug and socket) | 3*6+1*4 | 25 | 380 | 30 | 37 | LC70-00-094-X | 23 | 5 |
| LC70-20-095-X | Cable (without plug and socket) | 3*6+2*4 | 20 | 380 | 30 | 36 | LC70-00-095-X | 23 | 5 |
| L70-30-1E2 | Cable (without plug and socket) | Network cable | 30 | – | – | 24 | L70-00-1E2 | 23 | 5 |
| L80-30-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 30 | 380 | 16 | 48 | L80-00-134-X | 37 | 7 |
| L90-20-075-X | Cable (without plug and socket) | 5*10 | 20 | 380 | 60 | 84 | L90-00-075-X | 64 | 670*472*667 |
| WC70-15 | Cable, welding clamp | 1*75 | 15 | 90 | 400 | 38 | WC70-00 | 23 | 6 |
| WC80-23 | Cable, welding clamp | 1*75 | 23 | 90 | 400 | 64 | WC80-00 | 41 | 7 |
| L80-000-DS | Flat wire, this product is not wired yet | 13*4 | 13 | – | 20 | – | L80-000-DS | 50 | 470*597*630 |
| Motor drive | |||||||||
| LNJ18230-095-X | Cable (without plug and socket) | 3*6+2*4 | 70 | 380 | 30 | 60 | LNJ18-000-095-X | 40 | 582*460*536 |
