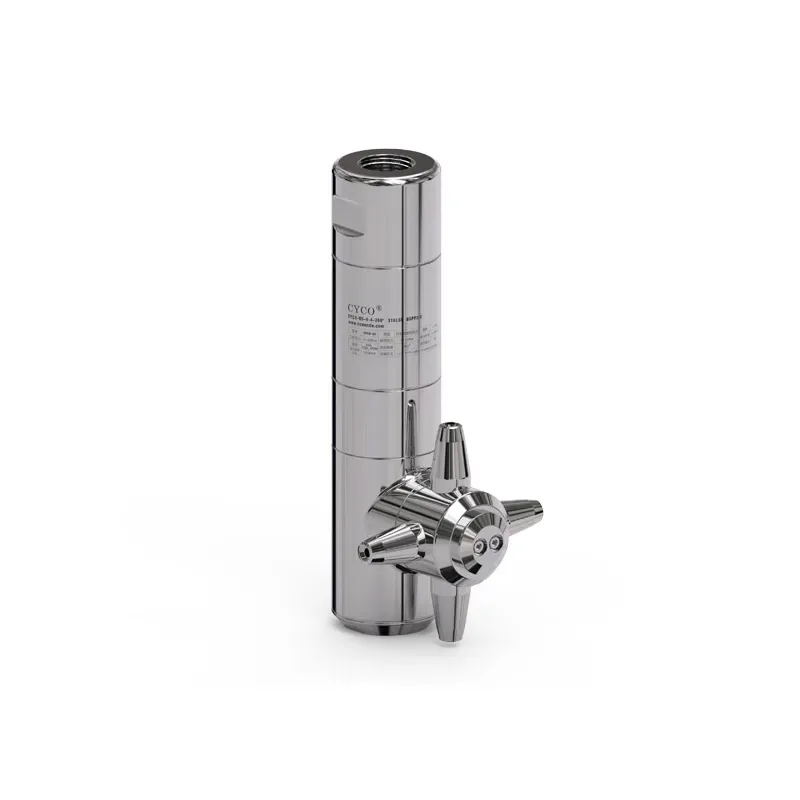

CY05 3D Rotary Cleaning Ball
The spray ball is driven by the cleaning fluid, which powers a turbine that drives the internal reduction mechanism. The gear mechanism operates along a set trajectory, achieving both rotation and revolution for 360-degree comprehensive cleaning without dead angles.
The spray ball is driven by the cleaning fluid, which powers a turbine that drives the internal reduction mechanism. The gear mechanism operates along a set trajectory, achieving both rotation and revolution for 360-degree comprehensive cleaning without dead angles.
Optimized structural design that generates a greater impact water flow.
Excellent sealing design with a leakage rate of only 3%, providing a more economical cleaning solution.
Independent gearbox design prevents internal gear damage, allowing it to operate in poor water quality conditions.
The water jet forms a column shape, generating high impact force.
Precision gear alignment enables the nozzle to operate along the set trajectory, ensuring thorough cleaning.
Special flow-stabilizing design concentrates the water jet, enhancing impact force and ensuring cleaner results.
Cleaning track simulation:
Cleaning scene:
| Cleaning Mode | 3D Rotation |
|---|---|
| Connection | 3/4", BSPT |
| Material | 316L, PTFE |
| Max Cleaning Diameter | 29.86' |
| Max Flow(L/min) | 135 |
| Max Pressure(bar) | 15 |
| Max Temperature | 200°F |
| Min Entry Diameter | 4.13" |
| Min Pressure(bar) | 3.4 |
