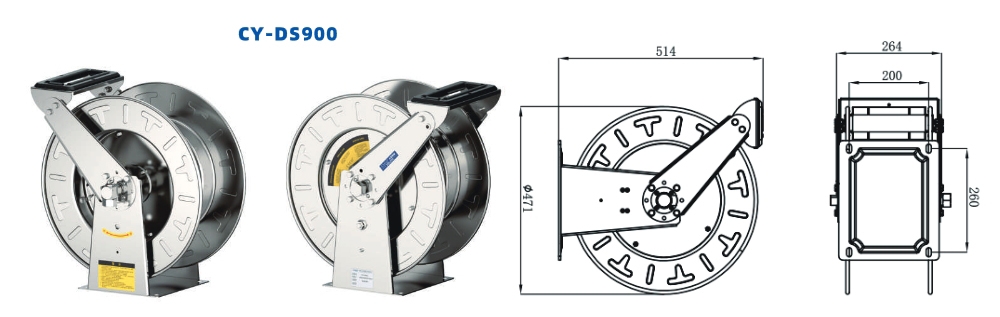

Hose Reel CY-DS84/CY-DS900/CY-HS18 Series
Stainless steel reels are widely used, such as: food production, cleaning, chemical delivery, and industrial solvent treatment. At the same time, stainless steel reels can also be used in coastal and offshore environments with demanding corrosion resistance. Some models in this series can be produced in 316L material according to customer requirements to further improve corrosion resistance.
Adjustable buffer stop: allows any desired length of rope to be maintained outside the reel.
Adjustable guide arm: multiple guide arm positions facilitate versatile use and field adjustment.
Enclosed drive spring: the drive mechanism is enclosed to protect it from environmental factors.
Long-life drive spring: the clutch-type reel shaft core almost eliminates the possibility of spring damage caused by reverse winding of the reel.
Corrosion and stain resistance: made of 304 stainless steel stamping parts, with surface electrochemical treatment.
Stainless steel reels are widely used, such as: food production, cleaning, chemical delivery, and industrial solvent treatment. At the same time, stainless steel reels can also be used in coastal and offshore environments with demanding corrosion resistance. Some models in this series can be produced in 316L material according to customer requirements to further improve corrosion resistance.
| Model (without hose) | Weight (kg) | Maximum pressure (bar) | Hose inner diameter (mm) | Hose outer diameter (mm) | Hose outlet NPT internal thread | Reel Import NPT internal thread | Hose length (m) | Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Long | Width | High | ||||||||
| Low and medium pressure reels max. 99°C (high pressure reels max. 65°C) | ||||||||||
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8 | 3/8 | 15 | 492 | 206 | 521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8 | 3/8 | 21 | 492 | 206 | 521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2 | 1/2 | 15 | 492 | 206 | 521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 492 | 206 | 521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8 | 3/8 | 23 | 479 | 226 | 498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 479 | 226 | 498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4 | 3/4 | 12 | 479 | 226 | 498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 25 | 479 | 291 | 498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 30 | 479 | 291 | 498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4 | 3/4 | 20 | 479 | 291 | 498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8 | 3/8 | 11 | 356 | 156 | 365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2 | 1/2 | 15 | 502 | 178 | 514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2 | 1/2 | 30 | 667 | 305 | 670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4 | 3/4 | 23 | 667 | 305 | 670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1 | 1 | 15 | 667 | 305 | 670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2 | 1/2 | 23 | 667 | 305 | 670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4 | 3/4 | 15 | 667 | 305 | 670 |
| Model | Total Weight | Maximum pressure | Reel Exit | Reel Import | Inner Diameter | 6 | 10 | 13 | 19 | 25 | Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Without Hose) | kg | bar | NPT Internal Thread | NPT Internal Thread | Outer Diameter | 14 | 18 | 22 | 30 | 38 | Length | Width | Height |
| Manual medium pressure reel, the highest temperature is 99℃ | |||||||||||||
| HS18-000 | 16 | 35 | 1/2 | 1/2 | Hose length | 130 | 91 | 61 | — | — | 508 | 464 | 483 |
| HS28-000 | 16 | 35 | 1/2 | 1/2 | 191 | 137 | 91 | — | — | 508 | 616 | 483 | |
| HS19-000 | 17 | 35 | 3/4 | 3/4 | 130 | 91 | 61 | 23 | — | 508 | 464 | 483 | |
| HS29-000 | 16 | 35 | 3/4 | 3/4 | 191 | 137 | 91 | 38 | — | 508 | 616 | 483 | |
| HS37-000 L | 21 | 35 | 1(M) | 1 | — | — | — | — | 30 | 604 | 584 | 626 | |
| This series of products does not include a hose. If a hose is required, please consult CYCO. | |||||||||||||
