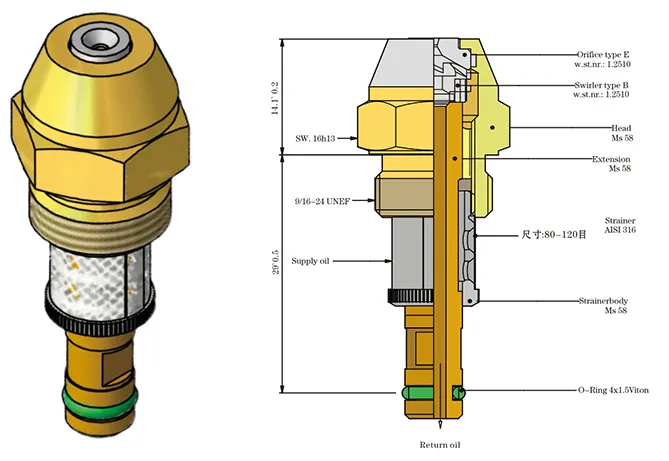

Oil Return Pressure Stabilizing Nozzle
The oil return nozzle is a single-channel pressure atomizing nozzle that can adjust the spray flow and angle. There is an oil return channel inside the oil return nozzle. When the oil return valve is opened, part of the fuel can return to the fuel tank through the oil return channel. At the same time, since the oil pressure before the nozzle is basically unchanged, the atomization effect of the nozzle is stable when the flow rate is changed.
Application features:
1: The flow rate of the nozzle can be accurately controlled by the return oil pressure.
2: The range of change of the spray angle is small.
3: Stable oil supply pressure, variable flow rate, stable atomization effect.
4: A wide range of flow rate can be provided.
Return oil parameters and characteristics:
1. Flow rate: 20-750KG/h
2. Spray angle: 30°35°45°50°60°70°80°
3. Adjustment ratio: 1:3-1:5
